QS logging facilities. More...

#include <qs.hpp>

Collaboration diagram for QS:

Data Structures
struct	QSrxPriv

Public Types
enum	QSType : std::uint8_t { I8_T , U8_T , I16_T , U16_T , I32_T , U32_T , F32_T , F64_T , STR_T , MEM_T , SIG_T , OBJ_T , FUN_T , I64_T , U64_T , HEX_FMT }
	Enumerates data formats recognized by QS. More...

enum	QSpyObjKind : std::uint8_t { SM_OBJ , AO_OBJ , MP_OBJ , EQ_OBJ , TE_OBJ , AP_OBJ , MAX_OBJ }
	Kinds of objects used in QS. More...

enum	OSpyObjCombnation : std::uint8_t { SM_AO_OBJ = MAX_OBJ }

Static Public Member Functions
static void	initBuf (std::uint8_t *const sto, std::uint_fast16_t const stoSize) noexcept
	Initialize the QS data buffer. More...

static void	glbFilter_ (std::int_fast16_t const filter) noexcept
	Set/clear the global Filter for a given QS record. More...

static void	locFilter_ (std::int_fast16_t const filter) noexcept
	Set/clear the local Filter for a given object-id. More...

static void	beginRec_ (std::uint_fast8_t const rec) noexcept
	Mark the begin of a QS record `rec`. More...

static void	endRec_ (void) noexcept
	Mark the end of a QS record `rec`. More...

static void	u8_raw_ (std::uint8_t const d) noexcept
	output std::uint8_t data element without format information More...

static void	u8u8_raw_ (std::uint8_t const d1, std::uint8_t const d2) noexcept
	output two std::uint8_t data elements without format information More...

static void	u16_raw_ (std::uint16_t d) noexcept
	Output std::uint16_t data element without format information. More...

static void	u32_raw_ (std::uint32_t d) noexcept
	Output std::uint32_t data element without format information. More...

static void	obj_raw_ (void const *const obj) noexcept
	Output obj pointer data element without format information. More...

static void	str_raw_ (char_t const *s) noexcept
	Output zero-terminated ASCII string element without format information. More...

static void	u8_fmt_ (std::uint8_t const format, std::uint8_t const d) noexcept
	Output std::uint8_t data element with format information. More...

static void	u16_fmt_ (std::uint8_t format, std::uint16_t d) noexcept
	output std::uint16_t data element with format information More...

static void	u32_fmt_ (std::uint8_t format, std::uint32_t d) noexcept
	Output std::uint32_t data element with format information. More...

static void	f32_fmt_ (std::uint8_t format, float32_t const d) noexcept
	Output 32-bit floating point data element with format information. More...

static void	f64_fmt_ (std::uint8_t format, float64_t const d) noexcept
	Output 64-bit floating point data element with format information. More...

static void	str_fmt_ (char_t const *s) noexcept
	Output zero-terminated ASCII string element with format information. More...

static void	mem_fmt_ (std::uint8_t const *blk, std::uint8_t size) noexcept
	Output memory block of up to 255-bytes with format information. More...

static void	u64_raw_ (std::uint64_t d) noexcept
	Output uint64_t data element without format information. More...

static void	u64_fmt_ (std::uint8_t format, std::uint64_t d) noexcept
	Output uint64_t data element with format information. More...

static void	sig_dict_pre_ (enum_t const sig, void const const obj, char_t const name) noexcept
	Output signal dictionary record. More...

static void	obj_dict_pre_ (void const const obj, char_t const name) noexcept
	Output object dictionary record. More...

static void	fun_dict_pre_ (void(const fun)(void), char_t const name) noexcept
	Output function dictionary record. More...

static void	usr_dict_pre_ (enum_t const rec, char_t const *const name) noexcept
	Output user dictionary record. More...

static void	rxInitBuf (std::uint8_t *const sto, std::uint16_t const stoSize) noexcept
	Initialize the QS RX data buffer. More...

static void	rxParse (void)
	Parse all bytes present in the QS RX data buffer. More...

static std::uint16_t	rxGetNfree (void) noexcept
	Obtain the number of free bytes in the QS RX data buffer. More...

static bool	rxPut (std::uint8_t const b) noexcept
	Put one byte into the QS RX lock-free buffer. More...

static void	setCurrObj (std::uint8_t obj_kind, void *obj_ptr) noexcept
	Set the "current object" in the Target. More...

static void	queryCurrObj (std::uint8_t obj_kind) noexcept
	Query the "current object" in the Target. More...

static std::uint16_t	getByte (void) noexcept
	Byte-oriented interface to the QS data buffer. More...

static std::uint8_t const *	getBlock (std::uint16_t *const pNbytes) noexcept
	Block-oriented interface to the QS data buffer. More...

static bool	onStartup (void const *arg)
	Callback to startup the QS facility. More...

static void	onCleanup (void)
	Callback to cleanup the QS facility. More...

static void	onFlush (void)
	Callback to flush the QS trace data to the host. More...

static QSTimeCtr	onGetTime (void)
	Callback to obtain a timestamp for a QS record. More...

static void	onReset (void)
	callback function to reset the Target (to be implemented in the BSP) More...

static void	onCommand (std::uint8_t cmdId, std::uint32_t param1, std::uint32_t param2, std::uint32_t param3)
	Callback function to execute user commands (to be implemented in BSP) More...

static void	rxHandleGoodFrame_ (std::uint8_t const state)
	internal function to handle incoming (QS-RX) packet More...

static void	assertion_pre_ (char_t const *const module, int_t const loc, std::uint32_t delay)
	internal function to produce the assertion failure trace record More...

static void	crit_entry_pre_ (void)
	internal function to produce the critical section entry record More...

static void	crit_exit_pre_ (void)
	internal function to produce the critical section exit record More...

static void	isr_entry_pre_ (std::uint8_t const isrnest, std::uint8_t const prio)
	internal function to produce the ISR entry record More...

static void	isr_exit_pre_ (std::uint8_t const isrnest, std::uint8_t const prio)
	internal function to produce the ISR exit record More...

static void	onTestSetup (void)
	callback to setup a unit test inside the Target More...

static void	onTestTeardown (void)
	callback to teardown after a unit test inside the Target More...

static void	onTestEvt (QEvt *e)
	callback to "massage" the test event before dispatching/posting it More...

static void	onTestPost (void const sender, QActive recipient, QEvt const *e, bool status)

static void	onTestLoop (void)
	callback to run the test loop More...

static void	processTestEvts_ (void)
	internal function to process posted events during test More...

static void	tickX_ (std::uint_fast8_t const tickRate, void const *const sender) noexcept
	internal function to process armed time events during test More...

static std::uint32_t	getTestProbe_ (void(*const api)(void)) noexcept
	internal function to get the Test-Probe for a given API More...

template<typename T_OUT , typename T_IN >
static T_OUT	force_cast (T_IN in)
	template for forcing cast of member functions for function dictionaries and test probes. More...

Data Fields
std::uint8_t	glbFilter [16]
	global on/off QS filter More...

std::uint8_t	locFilter [16]
	lobal on/off QS filter More...

void const *	locFilter_AP
	deprecated local QS filter More...

std::uint8_t *	buf
	pointer to the start of the ring buffer More...

QSCtr	end
	offset of the end of the ring buffer More...

QSCtr	head
	offset to where next byte will be inserted More...

QSCtr	tail
	offset of where next record will be extracted More...

QSCtr	used
	number of bytes currently in the ring buffer More...

std::uint8_t	seq
	the record sequence number More...

std::uint8_t	chksum
	the checksum of the current record More...

std::uint8_t	full
	the ring buffer is temporarily full More...

std::uint_fast8_t	critNest
	critical section nesting level More...

Static Public Attributes
static QS	priv_

static struct QP::QS::QSrxPriv	rxPriv_

Detailed Description

QS logging facilities.

Description: This class groups together QS services. It has only static members and should not be instantiated.

Definition at line 302 of file qs.hpp.

Data Structure Documentation

◆ QP::QS::QSrxPriv

struct QP::QS::QSrxPriv

Definition at line 556 of file qs.hpp.

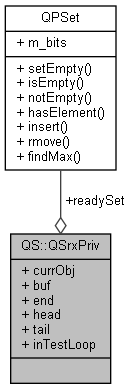

Collaboration diagram for QS::QSrxPriv:

Data Fields
void *	currObj[MAX_OBJ]	current objects
uint8_t *	buf	pointer to the start of the ring buffer
QSCtr	end	offset of the end of the ring buffer
QSCtr	head	offset to where next byte will be inserted
QSCtr	tail	offset of where next byte will be extracted
QPSet	readySet	QUTEST ready-set of active objects.
bool	inTestLoop	QUTest event loop is running.

Member Enumeration Documentation

◆ QSType

enum QSType : std::uint8_t

Enumerates data formats recognized by QS.

Description: QS uses this enumeration is used only internally for the formatted user data elements.

Enumerator
I8_T	signed 8-bit integer format
U8_T	unsigned 8-bit integer format
I16_T	signed 16-bit integer format
U16_T	unsigned 16-bit integer format
I32_T	signed 32-bit integer format
U32_T	unsigned 32-bit integer format
F32_T	32-bit floating point format
F64_T	64-bit floating point format
STR_T	zero-terminated ASCII string format
MEM_T	up to 255-bytes memory block format
SIG_T	event signal format
OBJ_T	object pointer format
FUN_T	function pointer format
I64_T	signed 64-bit integer format
U64_T	unsigned 64-bit integer format
HEX_FMT	HEX format for the "width" filed.

Definition at line 494 of file qs.hpp.

◆ QSpyObjKind

enum QSpyObjKind : std::uint8_t

Kinds of objects used in QS.

Enumerator
SM_OBJ	state machine object for QEP
AO_OBJ	active object
MP_OBJ	event pool object
EQ_OBJ	raw queue object
TE_OBJ	time event object
AP_OBJ	generic Application-specific object
MAX_OBJ

Definition at line 514 of file qs.hpp.

◆ OSpyObjCombnation

enum OSpyObjCombnation : std::uint8_t

Enumerator
SM_AO_OBJ	combination of SM and AO

Definition at line 524 of file qs.hpp.

Member Function Documentation

◆ initBuf()

void initBuf	(	std::uint8_t *const	sto,
		std::uint_fast16_t const	stoSize
	)

staticnoexcept

Initialize the QS data buffer.

Description: This function should be called from QP::QS::onStartup() to provide QS with the data buffer. The first argument sto[] is the address of the memory block, and the second argument stoSize is the size of this block in bytes. Currently the size of the QS buffer cannot exceed 64KB.

Note: QS can work with quite small data buffers, but you will start losing data if the buffer is too small for the bursts of tracing activity. The right size of the buffer depends on the data production rate and the data output rate. QS offers flexible filtering to reduce the data production rate.; If the data output rate cannot keep up with the production rate, QS will start overwriting the older data with newer data. This is consistent with the "last-is-best" QS policy. The record sequence counters and check sums on each record allow the QSPY host uitiliy to easily detect any data loss.

Definition at line 71 of file qs.cpp.

◆ glbFilter_()

void glbFilter_ ( std::int_fast16_t const filter )

staticnoexcept

Set/clear the global Filter for a given QS record.

Description: This function sets up the QS filter to enable the record type filter. The argument QS_ALL_RECORDS specifies to filter-in all records. This function should be called indirectly through the macro QS_GLB_FILTER()

Parameters

[in] filter the QS record-d or group to enable in the filter, if positive or disable, if negative. The record-id numbers must be in the range -127..127.

Note: Filtering based on the record-type is only the first layer of filtering. The second layer is based on the object-type. Both filter layers must be enabled for the QS record to be inserted in the QS buffer.

See also: QP::QS::locFilter_()

Definition at line 121 of file qs.cpp.

◆ locFilter_()

void locFilter_ ( std::int_fast16_t const filter )

staticnoexcept

Set/clear the local Filter for a given object-id.

Description: This function sets up the local QS filter to enable or disable the given QS object-id or a group of object-ids filter. This function should be called indirectly through the macro QS_LOC_FILTER()

Parameters

[in] filter the QS object-id or group to enable in the filter, if positive or disable, if negative. The qs_id numbers must be in the range 1..127.

Note: Filtering based on the object-id (local filter) is the second layer of filtering. The first layer is based on the QS record-type (gloabl filter). Both filter layers must be enabled for the QS record to be inserted into the QS buffer.

See also: QP::QS::glbFilter_()

Definition at line 346 of file qs.cpp.

◆ beginRec_()

void beginRec_ ( std::uint_fast8_t const rec )

staticnoexcept

Mark the begin of a QS record rec.

Description: This function must be called at the beginning of each QS record. This function should be called indirectly through the macro QS_BEGIN_ID(), or QS_BEGIN_NOCRIT(), depending if it's called in a normal code or from a critical section.

Definition at line 410 of file qs.cpp.

◆ endRec_()

void endRec_ ( void )

staticnoexcept

Mark the end of a QS record rec.

Description: This function must be called at the end of each QS record. This function should be called indirectly through the macro QS_END(), or QS_END_NOCRIT(), depending if it's called in a normal code or from a critical section.

Definition at line 436 of file qs.cpp.

◆ u8_raw_()

void u8_raw_ ( std::uint8_t const d )

staticnoexcept

output std::uint8_t data element without format information

Note: This function is only to be used through macros, never in the client code directly.

Definition at line 722 of file qs.cpp.

◆ u8u8_raw_()

void u8u8_raw_	(	std::uint8_t const	d1,
		std::uint8_t const	d2
	)

staticnoexcept

output two std::uint8_t data elements without format information

Note: This function is only to be used through macros, never in the client code directly.

Definition at line 739 of file qs.cpp.

◆ u16_raw_()

void u16_raw_ ( std::uint16_t d )

staticnoexcept

Output std::uint16_t data element without format information.

Note: This function is only to be used through macros, never in the client code directly.

Definition at line 757 of file qs.cpp.

◆ u32_raw_()

void u32_raw_ ( std::uint32_t d )

staticnoexcept

Output std::uint32_t data element without format information.

Note: This function is only to be used through macros, never in the client code directly.

Definition at line 780 of file qs.cpp.

◆ obj_raw_()

void obj_raw_ ( void const *const obj )

staticnoexcept

Output obj pointer data element without format information.

Note: This function is only to be used through macros, never in the client code directly.

Definition at line 801 of file qs.cpp.

◆ str_raw_()

void str_raw_ ( char_t const * s )

staticnoexcept

Output zero-terminated ASCII string element without format information.

Note: This function is only to be used through macros, never in the client code directly.

Definition at line 819 of file qs.cpp.

◆ u8_fmt_()

void u8_fmt_	(	std::uint8_t const	format,
		std::uint8_t const	d
	)

staticnoexcept

Output std::uint8_t data element with format information.

Description

Note: This function is only to be used through macros, never in the client code directly.

Definition at line 579 of file qs.cpp.

◆ u16_fmt_()

void u16_fmt_	(	std::uint8_t	format,
		std::uint16_t	d
	)

staticnoexcept

output std::uint16_t data element with format information

Description: This function is only to be used through macros, never in the client code directly.

Definition at line 599 of file qs.cpp.

◆ u32_fmt_()

void u32_fmt_	(	std::uint8_t	format,
		std::uint32_t	d
	)

staticnoexcept

Output std::uint32_t data element with format information.

Note: This function is only to be used through macros, never in the client code directly.

Definition at line 624 of file qs.cpp.

◆ f32_fmt_()

void f32_fmt_	(	std::uint8_t	format,
		float32_t const	d
	)

staticnoexcept

Output 32-bit floating point data element with format information.

Note: This function is only to be used through macros, never in the client code directly.

Definition at line 49 of file qs_fp.cpp.

◆ f64_fmt_()

void f64_fmt_	(	std::uint8_t	format,
		float64_t const	d
	)

staticnoexcept

Output 64-bit floating point data element with format information.

Note: This function is only to be used through macros, never in the client code directly.

Definition at line 78 of file qs_fp.cpp.

◆ str_fmt_()

void str_fmt_ ( char_t const * s )

staticnoexcept

Output zero-terminated ASCII string element with format information.

Note: This function is only to be used through macros, never in the client code directly.

Definition at line 691 of file qs.cpp.

◆ mem_fmt_()

void mem_fmt_	(	std::uint8_t const *	blk,
		std::uint8_t	size
	)

staticnoexcept

Output memory block of up to 255-bytes with format information.

Note: This function is only to be used through macros, never in the client code directly.

Definition at line 663 of file qs.cpp.

◆ u64_raw_()

void u64_raw_ ( std::uint64_t d )

staticnoexcept

Output uint64_t data element without format information.

Note: This function is only to be used through macros, never in the client code directly.

Definition at line 49 of file qs_64bit.cpp.

◆ u64_fmt_()

void u64_fmt_	(	std::uint8_t	format,
		std::uint64_t	d
	)

staticnoexcept

Output uint64_t data element with format information.

Note: This function is only to be used through macros, never in the client code directly.

Definition at line 70 of file qs_64bit.cpp.

◆ sig_dict_pre_()

void sig_dict_pre_	(	enum_t const	sig,
		void const *const	obj,
		char_t const *	name
	)

staticnoexcept

Output signal dictionary record.

Note: This function is only to be used through macro QS_SIG_DICTIONARY()

Definition at line 933 of file qs.cpp.

◆ obj_dict_pre_()

void obj_dict_pre_	(	void const *const	obj,
		char_t const *	name
	)

staticnoexcept

Output object dictionary record.

Note: This function is only to be used through macro QS_OBJ_DICTIONARY()

Definition at line 954 of file qs.cpp.

◆ fun_dict_pre_()

void fun_dict_pre_	(	void(*)(void)	fun,
		char_t const *	name
	)

staticnoexcept

Output function dictionary record.

Note: This function is only to be used through macro QS_FUN_DICTIONARY()

Definition at line 974 of file qs.cpp.

◆ usr_dict_pre_()

void usr_dict_pre_	(	enum_t const	rec,
		char_t const *const	name
	)

staticnoexcept

Output user dictionary record.

Note: This function is only to be used through macro QS_USR_DICTIONARY()

Definition at line 646 of file qs.cpp.

◆ rxInitBuf()

void rxInitBuf	(	std::uint8_t *const	sto,
		std::uint16_t const	stoSize
	)

staticnoexcept

Initialize the QS RX data buffer.

Description: This function should be called from QS::onStartup() to provide QS-RX with the receive data buffer.

Parameters

[in]	sto[]	the address of the memory block
[in]	stoSize	the size of this block [bytes]. The size of the QS RX buffer cannot exceed 64KB.

Note: QS-RX can work with quite small data buffers, but you will start losing data if the buffer is not drained fast enough in the idle task.; If the data input rate exceeds the QS-RX processing rate, the data will be lost, but the QS protocol will notice that: (1) that the checksum in the incomplete QS records will fail; and (2) the sequence counter in QS records will show discontinuities.

The QS-RX channel will report any data errors by sending the QS_RX_DATA_ERROR trace record.

Definition at line 243 of file qs_rx.cpp.

◆ rxParse()

void rxParse ( void )

static

Parse all bytes present in the QS RX data buffer.

Definition at line 370 of file qs_rx.cpp.

◆ rxGetNfree()

std::uint16_t rxGetNfree ( void )

staticnoexcept

Obtain the number of free bytes in the QS RX data buffer.

Description: This function is intended to be called from the ISR that reads the QS-RX bytes from the QSPY application. The function returns the conservative number of free bytes currently available in the buffer, assuming that the head pointer is not being moved concurrently. The tail pointer might be moving, meaning that bytes can be concurrently removed from the buffer.

Definition at line 283 of file qs_rx.cpp.

◆ rxPut()

bool rxPut ( std::uint8_t const b )

inlinestaticnoexcept

Put one byte into the QS RX lock-free buffer.

put one byte into the QS RX lock-free buffer

Definition at line 596 of file qs.hpp.

◆ setCurrObj()

void setCurrObj	(	std::uint8_t	obj_kind,
		void *	obj_ptr
	)

staticnoexcept

Set the "current object" in the Target.

Description: This function programmatically sets the "current object" in the Target.

Definition at line 302 of file qs_rx.cpp.

◆ queryCurrObj()

void queryCurrObj ( std::uint8_t obj_kind )

staticnoexcept

Query the "current object" in the Target.

Description: This function programmatically generates the response to the query for a "current object".

Definition at line 314 of file qs_rx.cpp.

◆ getByte()

std::uint16_t getByte ( void )

staticnoexcept

Byte-oriented interface to the QS data buffer.

Description: This function delivers one byte at a time from the QS data buffer.

Returns: the byte in the least-significant 8-bits of the 16-bit return value if the byte is available. If no more data is available at the time, the function returns QP::QS_EOD (End-Of-Data).

Note: QP::QS::getByte() is not protected with a critical section.

Definition at line 852 of file qs.cpp.

◆ getBlock()

std::uint8_t const * getBlock ( std::uint16_t *const pNbytes )

staticnoexcept

Block-oriented interface to the QS data buffer.

Description: This function delivers a contiguous block of data from the QS data buffer. The function returns the pointer to the beginning of the block, and writes the number of bytes in the block to the location pointed to by pNbytes. The argument pNbytes is also used as input to provide the maximum size of the data block that the caller can accept.

Returns: if data is available, the function returns pointer to the contiguous block of data and sets the value pointed to by pNbytes to the # available bytes. If data is available at the time the function is called, the function returns NULL pointer and sets the value pointed to by pNbytes to zero.

Note: Only the NULL return from QP::QS::getBlock() indicates that the QS buffer is empty at the time of the call. The non-NULL return often means that the block is at the end of the buffer and you need to call QP::QS::getBlock() again to obtain the rest of the data that "wrapped around" to the beginning of the QS data buffer.; QP::QS::getBlock() is not protected with a critical section.

Definition at line 897 of file qs.cpp.

◆ onStartup()

static bool onStartup ( void const * arg )

static

Callback to startup the QS facility.

◆ onCleanup()

static void onCleanup ( void )

static

Callback to cleanup the QS facility.

◆ onFlush()

static void onFlush ( void )

static

Callback to flush the QS trace data to the host.

◆ onGetTime()

QSTimeCtr onGetTime ( void )

static

Callback to obtain a timestamp for a QS record.

Definition at line 1347 of file qs_rx.cpp.

◆ onReset()

static void onReset ( void )

static

callback function to reset the Target (to be implemented in the BSP)

◆ onCommand()

static void onCommand	(	std::uint8_t	cmdId,
		std::uint32_t	param1,
		std::uint32_t	param2,
		std::uint32_t	param3
	)

static

Callback function to execute user commands (to be implemented in BSP)

◆ rxHandleGoodFrame_()

void rxHandleGoodFrame_ ( std::uint8_t const state )

static

internal function to handle incoming (QS-RX) packet

Definition at line 885 of file qs_rx.cpp.

◆ assertion_pre_()

void assertion_pre_	(	char_t const *const	module,
		int_t const	loc,
		std::uint32_t	delay
	)

static

internal function to produce the assertion failure trace record

Note: This function is only to be used through macro QS_ASSERTION()

Definition at line 994 of file qs.cpp.

◆ crit_entry_pre_()

void crit_entry_pre_ ( void )

static

internal function to produce the critical section entry record

Definition at line 1009 of file qs.cpp.

◆ crit_exit_pre_()

void crit_exit_pre_ ( void )

static

internal function to produce the critical section exit record

Definition at line 1018 of file qs.cpp.

◆ isr_entry_pre_()

void isr_entry_pre_	(	std::uint8_t const	isrnest,
		std::uint8_t const	prio
	)

static

internal function to produce the ISR entry record

Definition at line 1027 of file qs.cpp.

◆ isr_exit_pre_()

void isr_exit_pre_	(	std::uint8_t const	isrnest,
		std::uint8_t const	prio
	)

static

internal function to produce the ISR exit record

Definition at line 1038 of file qs.cpp.

◆ onTestSetup()

static void onTestSetup ( void )

static

callback to setup a unit test inside the Target

◆ onTestTeardown()

static void onTestTeardown ( void )

static

callback to teardown after a unit test inside the Target

◆ onTestEvt()

static void onTestEvt ( QEvt * e )

static

callback to "massage" the test event before dispatching/posting it

◆ onTestPost()

static void onTestPost	(	void const *	sender,
		QActive *	recipient,
		QEvt const *	e,
		bool	status
	)

static

◆ onTestLoop()

static void onTestLoop ( void )

static

callback to run the test loop

◆ processTestEvts_()

void processTestEvts_ ( void )

static

internal function to process posted events during test

Definition at line 270 of file qutest.cpp.

◆ tickX_()

void tickX_	(	std::uint_fast8_t const	tickRate,
		void const *const	sender
	)

staticnoexcept

internal function to process armed time events during test

Definition at line 302 of file qutest.cpp.

◆ getTestProbe_()

std::uint32_t getTestProbe_ ( void(*)(void) api )

staticnoexcept

internal function to get the Test-Probe for a given API

Description: This function obtains the Test-Probe for a given API.

Parameters

[in] api pointer to the API function that requests its Test-Probe

Returns: Test-Probe data that has been received for the given API from the Host (running qutest). For any ginve API, the function returns the Test-Probe data in the same order as it was received from the Host. If there is no Test-Probe for a ginve API, or no more Test-Probes for a given API, the function returns zero.

Definition at line 1318 of file qs_rx.cpp.

◆ force_cast()

static T_OUT force_cast ( T_IN in )

inlinestatic

template for forcing cast of member functions for function dictionaries and test probes.

Definition at line 531 of file qs.hpp.

Field Documentation

◆ glbFilter

std::uint8_t glbFilter[16]

global on/off QS filter

Definition at line 540 of file qs.hpp.

◆ locFilter

std::uint8_t locFilter[16]

lobal on/off QS filter

Definition at line 541 of file qs.hpp.

◆ locFilter_AP

void const* locFilter_AP

deprecated local QS filter

Definition at line 542 of file qs.hpp.

◆ buf

std::uint8_t* buf

pointer to the start of the ring buffer

Definition at line 543 of file qs.hpp.

◆ end

QSCtr end

offset of the end of the ring buffer

Definition at line 544 of file qs.hpp.

◆ head

QSCtr head

offset to where next byte will be inserted

Definition at line 545 of file qs.hpp.

◆ tail

QSCtr tail

offset of where next record will be extracted

Definition at line 546 of file qs.hpp.

◆ used

QSCtr used

number of bytes currently in the ring buffer

Definition at line 547 of file qs.hpp.

◆ seq

std::uint8_t seq

the record sequence number

Definition at line 548 of file qs.hpp.

◆ chksum

std::uint8_t chksum

the checksum of the current record

Definition at line 549 of file qs.hpp.

◆ full

std::uint8_t full

the ring buffer is temporarily full

Definition at line 550 of file qs.hpp.

◆ critNest

std::uint_fast8_t critNest

critical section nesting level

Definition at line 552 of file qs.hpp.

◆ priv_

QS priv_

static

Definition at line 554 of file qs.hpp.

◆ rxPriv_

struct QP::QS::QSrxPriv rxPriv_

static

The documentation for this class was generated from the following files:

Data Structures

Public Types

Static Public Member Functions

Data Fields

Static Public Attributes

Detailed Description

Data Structure Documentation

◆ QP::QS::QSrxPriv

Member Enumeration Documentation

◆ QSType

◆ QSpyObjKind

◆ OSpyObjCombnation

Member Function Documentation

◆ initBuf()

◆ glbFilter_()

◆ locFilter_()

◆ beginRec_()

◆ endRec_()

◆ u8_raw_()

◆ u8u8_raw_()

◆ u16_raw_()

◆ u32_raw_()

◆ obj_raw_()

◆ str_raw_()

◆ u8_fmt_()

◆ u16_fmt_()

◆ u32_fmt_()

◆ f32_fmt_()

◆ f64_fmt_()

◆ str_fmt_()

◆ mem_fmt_()

◆ u64_raw_()

◆ u64_fmt_()

◆ sig_dict_pre_()

◆ obj_dict_pre_()

◆ fun_dict_pre_()

◆ usr_dict_pre_()

◆ rxInitBuf()

◆ rxParse()

◆ rxGetNfree()

◆ rxPut()

◆ setCurrObj()

◆ queryCurrObj()

◆ getByte()

◆ getBlock()

◆ onStartup()

◆ onCleanup()

◆ onFlush()

◆ onGetTime()

◆ onReset()

◆ onCommand()

◆ rxHandleGoodFrame_()

◆ assertion_pre_()

◆ crit_entry_pre_()

◆ crit_exit_pre_()

◆ isr_entry_pre_()

◆ isr_exit_pre_()

◆ onTestSetup()

◆ onTestTeardown()

◆ onTestEvt()

◆ onTestPost()

◆ onTestLoop()

◆ processTestEvts_()

◆ tickX_()

◆ getTestProbe_()

◆ force_cast()

Field Documentation

◆ glbFilter

◆ locFilter

◆ locFilter_AP

◆ buf

◆ end

◆ head

◆ tail

◆ used

◆ seq

◆ chksum

◆ full

◆ critNest

◆ priv_
