Abstract State Machine class (state machine interface) More...

#include "qp.hpp"

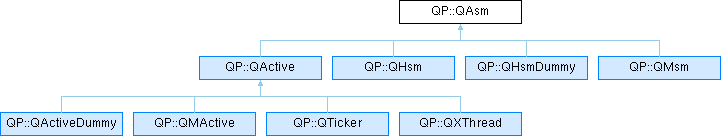

Inheritance diagram for QP::QAsm:

Public Types
enum	QStateRet : QState { Q_RET_SUPER , Q_RET_SUPER_SUB , Q_RET_UNHANDLED , Q_RET_HANDLED , Q_RET_IGNORED , Q_RET_ENTRY , Q_RET_EXIT , Q_RET_NULL , Q_RET_TRAN , Q_RET_TRAN_INIT , Q_RET_TRAN_EP , Q_RET_TRAN_HIST , Q_RET_TRAN_XP }

enum	ReservedSig : QSignal { Q_EMPTY_SIG , Q_ENTRY_SIG , Q_EXIT_SIG , Q_INIT_SIG }
	Reserved signals by the QP-framework. More...

Public Member Functions
virtual void	init (void const *const e, std::uint_fast8_t const qsId)=0

virtual void	init (std::uint_fast8_t const qsId)

virtual void	dispatch (QEvt const *const e, std::uint_fast8_t const qsId)=0

virtual bool	isIn (QStateHandler const state) noexcept

QStateHandler	state () const noexcept

QMState const *	stateObj () const noexcept

virtual QStateHandler	getStateHandler () noexcept

Static Public Member Functions
static QState	top (void const me, QEvt const const e) noexcept

Protected Member Functions
	QAsm () noexcept

QState	tran (QStateHandler const target) noexcept

QState	tran_hist (QStateHandler const hist) noexcept

QState	super (QStateHandler const superstate) noexcept

QState	qm_tran (void const *const tatbl) noexcept

QState	qm_tran_init (void const *const tatbl) noexcept

QState	qm_tran_hist (QMState const const hist, void const const tatbl) noexcept

QState	qm_tran_ep (void const *const tatbl) noexcept

QState	qm_tran_xp (QActionHandler const xp, void const *const tatbl) noexcept

QState	qm_entry (QMState const *const s) noexcept

QState	qm_exit (QMState const *const s) noexcept

QState	qm_sm_exit (QMState const *const s) noexcept

QState	qm_super_sub (QMState const *const s) noexcept

Protected Attributes
QAsmAttr	m_state

QAsmAttr	m_temp

Detailed Description

Abstract State Machine class (state machine interface)

Traceability

Definition at line 220 of file qp.hpp.

Member Enumeration Documentation

◆ QStateRet

enum QP::QAsm::QStateRet : QState

All possible return values from state-handlers

Note: The order is important for algorithmic correctness.

Enumerator
Q_RET_SUPER	event passed to superstate to handle
Q_RET_SUPER_SUB	event passed to submachine superstate
Q_RET_UNHANDLED	event unhandled due to a guard
Q_RET_HANDLED	event handled (internal transition)
Q_RET_IGNORED	event silently ignored (bubbled up to top)
Q_RET_ENTRY	state entry action executed
Q_RET_EXIT	state exit action executed
Q_RET_NULL	return value without any effect
Q_RET_TRAN	regular transition
Q_RET_TRAN_INIT	initial transition in a state or submachine
Q_RET_TRAN_EP	entry-point transition into a submachine
Q_RET_TRAN_HIST	transition to history of a given state
Q_RET_TRAN_XP	exit-point transition out of a submachine

Definition at line 230 of file qp.hpp.

◆ ReservedSig

enum QP::QAsm::ReservedSig : QSignal

Reserved signals by the QP-framework.

Enumerator
Q_EMPTY_SIG	signal to execute the default case
Q_ENTRY_SIG	signal for entry actions
Q_EXIT_SIG	signal for exit actions
Q_INIT_SIG	signal for nested initial transitions

Definition at line 258 of file qp.hpp.

Constructor & Destructor Documentation

◆ QAsm()

QP::QAsm::QAsm ( )

inlineexplicitprotectednoexcept

Protected default constructor of QP::QAsm.

Definition at line 266 of file qp.hpp.

Member Function Documentation

◆ init() [1/2]

QP::QAsm::init	(	void const *const	e,
		std::uint_fast8_t const	qsId )

pure virtual

Virtual function to take the top-most initial transition in the state machine.

Description: Synchronously executes the top-most initial transition in a state machine (must be overridden in the subclasses).

Parameters

[in]	e	pointer to an initialization parameter (might be nullptr)
[in]	qsId	QS-id of this state machine (for QS local filter)

Precondition qep_asm:200

the virtual pointer must be initialized,
the top-most initial transition must be initialized,
the initial transition must not be taken yet.

Implemented in QP::QHsm, QP::QMsm, QP::QActive, QP::QMActive, QP::QTicker, QP::QHsmDummy, QP::QActiveDummy, and QP::QXThread.

◆ init() [2/2]

QP::QAsm::init ( std::uint_fast8_t const qsId )

inlinevirtual

Virtual function to take the top-most initial transition in the state machine (overloaded).

Description: Synchronously executes the top-most initial transition in a state machine. This overloaded version takes no initialization parameter.

Parameters

[in] qsId QS-id of this state machine (for QS local filter)

Reimplemented in QP::QHsm, QP::QMsm, QP::QActive, QP::QMActive, QP::QTicker, and QP::QXThread.

Definition at line 281 of file qp.hpp.

◆ dispatch()

QP::QAsm::dispatch	(	QEvt const *const	e,
		std::uint_fast8_t const	qsId )

pure virtual

Virtual function to dispatch an event to the state machine.

Description: Synchronously dispatches an event for processing to a state machine (must be overridden in the subclasses). The processing of an event represents one run-to-completion (RTC) step.

Parameters

[in]	e	pointer to the event to be dispatched to the MSM
[in]	qsId	QS-id of this state machine (for QS local filter)

Precondition qep_asm:302

current state must be initialized
check the internal integrity (Software Self-Monitoring (SSM))

Implemented in QP::QHsm, QP::QMsm, QP::QActive, QP::QMActive, QP::QTicker, QP::QHsmDummy, QP::QActiveDummy, and QP::QXThread.

◆ isIn()

QP::QAsm::isIn ( QP::QStateHandler const state )

inlinevirtualnoexcept

Virtual function to check whether the state machine is in a given state.

Description: Tests if a given state is part of the current active state configuration. Please note that in a hierarchical state machine, to "be in a state" means also to be in a superstate of of the state.

Parameters

[in] state pointer to the state-handler function to be checked

Returns: 'true' if the state machine "is in" the state and 'false' otherwise

Attention: This function must be called only on a state machine that is in the "stable state configuration". Among others, this means that the state machine cannot call it in the middle of its own transition.

Traceability

SRS-QP-02_25

Reimplemented in QP::QHsm, QP::QMsm, QP::QActive, and QP::QMActive.

Definition at line 287 of file qp.hpp.

◆ state()

QStateHandler QP::QAsm::state ( ) const

inlinenoexcept

Definition at line 291 of file qp.hpp.

◆ stateObj()

QMState const * QP::QAsm::stateObj ( ) const

inlinenoexcept

Definition at line 294 of file qp.hpp.

◆ getStateHandler()

QP::QAsm::getStateHandler ( )

inlinevirtualnoexcept

Get the current state (handler) in the state machine

Reimplemented in QP::QHsm, QP::QMsm, and QP::QMActive.

Definition at line 299 of file qp.hpp.

◆ top()

QP::QAsm::top	(	void *const	me,
		QEvt const *const	e )

inlinestaticnoexcept

Top state handler that ignores all events.

Definition at line 303 of file qp.hpp.

◆ tran()

QP::QAsm::tran ( QStateHandler const target )

inlineprotectednoexcept

Internal helper function to take a state transition in QP::QHsm

Definition at line 313 of file qp.hpp.

◆ tran_hist()

QP::QAsm::tran_hist ( QStateHandler const hist )

inlineprotectednoexcept

Internal helper function to take a state transition to history in QP::QHsm

Definition at line 317 of file qp.hpp.

◆ super()

QP::QAsm::super ( QStateHandler const superstate )

inlineprotectednoexcept

Internal helper function to indicate superstate of a given state

Definition at line 321 of file qp.hpp.

◆ qm_tran()

QP::QAsm::qm_tran ( void const *const tatbl )

inlineprotectednoexcept

Internal helper function to take a state transition in QP::QMsm

Definition at line 325 of file qp.hpp.

◆ qm_tran_init()

QP::QAsm::qm_tran_init ( void const *const tatbl )

inlineprotectednoexcept

Internal helper function to take an initial transition in QP::QMsm

Definition at line 329 of file qp.hpp.

◆ qm_tran_hist()

QAsm::qm_tran_hist	(	QMState const *const	hist,
		void const *const	tatbl )

inlineprotectednoexcept

Internal helper function to take a state transition to history in QP::QMsm

Definition at line 333 of file qp.hpp.

◆ qm_tran_ep()

QP::QAsm::qm_tran_ep ( void const *const tatbl )

inlineprotectednoexcept

Internal helper function to take a transition to an entry point in QP::QMsm

Definition at line 341 of file qp.hpp.

◆ qm_tran_xp()

QP::QAsm::qm_tran_xp	(	QActionHandler const	xp,
		void const *const	tatbl )

inlineprotectednoexcept

Internal helper function to take a transition from an exit point in QP::QMsm

Definition at line 345 of file qp.hpp.

◆ qm_entry()

QP::QAsm::qm_entry ( QMState const *const s )

inlineprotectednoexcept

Internal helper function to execute state entry actions in QP::QMsm

Definition at line 355 of file qp.hpp.

◆ qm_exit()

QP::QAsm::qm_exit ( QMState const *const s )

inlineprotectednoexcept

Internal helper function to execute state exit actions in QP::QMsm

Definition at line 369 of file qp.hpp.

◆ qm_sm_exit()

QP::QAsm::qm_sm_exit ( QMState const *const s )

inlineprotectednoexcept

Internal helper function to execute state exit in a submachine in QP::QMsm

Traceability

SAS-QP-02_01

Definition at line 381 of file qp.hpp.

◆ qm_super_sub()

QState QP::QAsm::qm_super_sub ( QMState const *const s )

inlineprotectednoexcept

Definition at line 385 of file qp.hpp.

Member Data Documentation

◆ m_state

QAsm::m_state

protected

Current state (pointer to the current state-handler function)

Traceability

SRS-QP-02_10

Definition at line 222 of file qp.hpp.

◆ m_temp

QAsm::m_temp

protected

Temporary storage for target/act-table, etc.

Description: The m_temp data member is used for passing information from the QP Application to the "event processor" of QP. The m_temp member is also used as the Duplicate Inverse Storage of the m_state attribute in between transitions (part of QP Functional Safety (FuSa) Subsystem).

Definition at line 223 of file qp.hpp.
